Pacific Aerials P8022 OmniPro TV Antenna UHF Digital Terrestrial

One of the smallest omnidirectional antennas ever

Marine TV antennas have to be omnidirectional (able to receive from
any direction) because a boat underway or swinging at anchor is
constantly changing its bearing to the TV transmitter.

The Pacific Aerials P8022 OmniPro TV Antenna will
make the most of a weak signal but will not magically create one,
if there is no signal. At just 200mm,this is one of the smallest
omnidirectional antennas available – with an outstanding
performance on UHF/FM bands and inside VHF fringe areas. Install one on your boat and enjoy crisp
reception with your TV or FM radio.

Pacific Aerials P8022 OmniPro TV Antenna
Features:

• For boats, caravans, motor homes and recreational
  vehicles
• New dual dipole design gives superior performance
• Light and strong
• Omnidirectional – TV and FM radio reception from any
  direction
• Covers all television and FM radio bands
• High gain / low noise, digital ready amplifier
• Supplied complete with antenna mast and installation
  kit
• Quick and easy to install and remove
• Simple – no connectors to fit
• LEDs confirm correct connection
• Neat installation
• Maintenance free – non-corroding materials

Pacific Aerials P8022 OmniPro TV Antenna
Specifications:

• Model Number: P8022
• Antenna Type: Amplified omnidirectional TV/FM antenna
• Polarisation: Horizontal
• Antenna Radome: Marine grade UV inhibited glass filled
  nylon
• Antenna Elements: Internal coaxial elements
• Antenna Dimensions: 200mm x 40mm (8″ x 1-1/2″)
• Weight: 370g (13oz)
• Antenna Mast Height: 200mm (8″)
• Amplifier: Advanced high gain, low noise all surface mount on
  double-side sealed glass-fibre printed circuit board
• Amplifier Frequency Range: 40-890MHz
• Amplifier Gain: >22dB
• Amplifier Noise: <2dB
• Operating Ambient Temperature Range: -30°C to +60°C
• Output Voltage: (DIN 45004) 111dBuV
• Output Impedance: 75 ohm
• EMC Compliance: IEC 61000-6-1, EN 55024-2, EN 55024-4
• Power on indicator: Blue light emitting diode in
  radome
• Power injector supply voltage: 10-14.5VDC
• Power on indicator: Red light emitting diode in
  injector
• Supply current: 30mA average
• Installation Kit Cable: 10m (32′) white MATV coaxial
  cable

What’s in the box:

• Installation kit

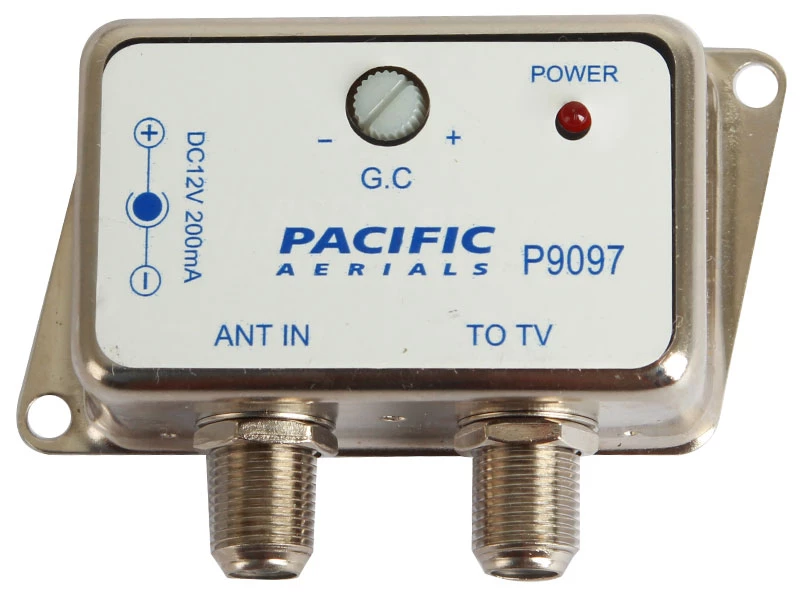

• Power injector
• TV cable

Note: P9100 Mounting Flange sold separately
