Pacific Aerials P6182 SeaMaster Pro VHF Antenna 1m With P6111 4-Way Base

High performance VHF antenna for long range communication

The Pacific Aerials P6182 SeaMaster Pro VHF
Antenna is an awesome accessory for your boat. Imagine
constant clear and crisp VHF radio reception while you’re out on
the water. It’s made of high quality materials that can withstand
harsh marine conditions. And it can be easily removed and remounted
for your convenience.

The Antenna

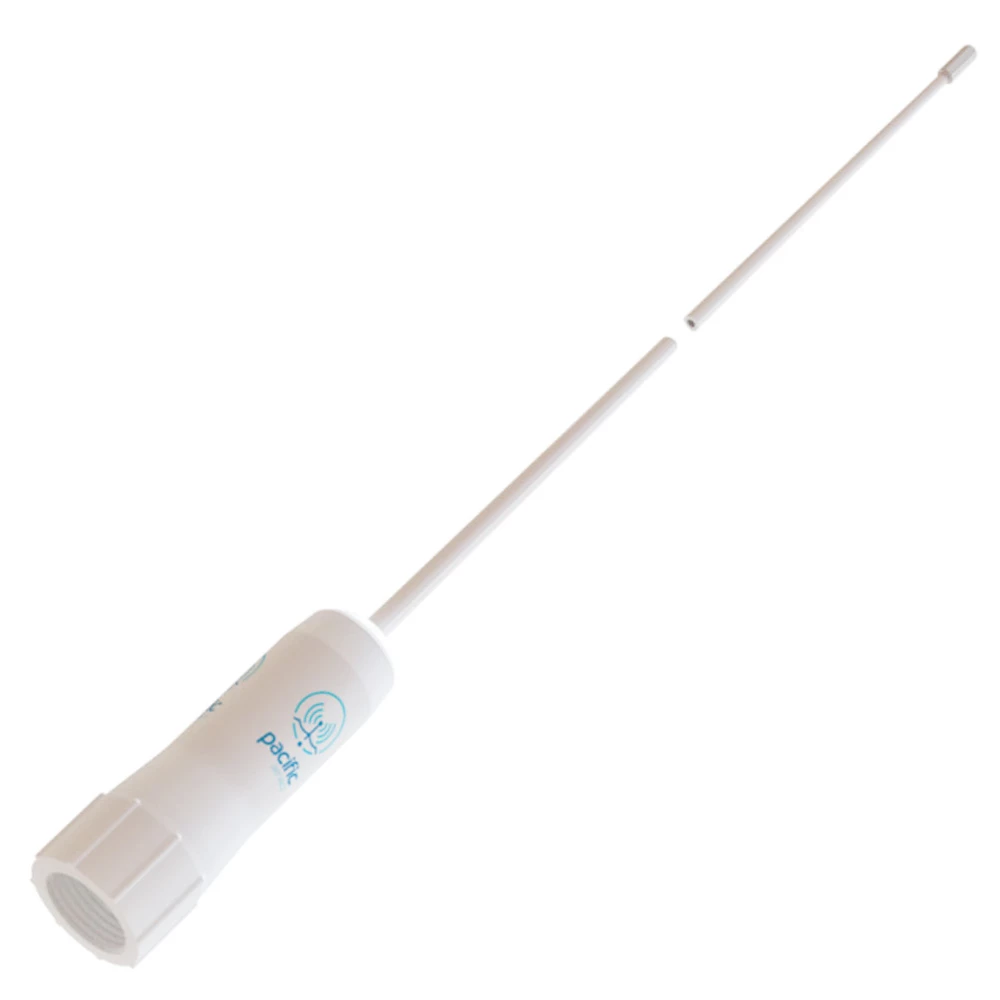

The Pacific Aerials P6182 SeaMaster Pro VHF
Antenna is a full performance antenna ideal in situations
where a smaller antenna is desirable. Its unique design allows the
antenna to be removed and remounted at your convenience. The
half-wave design produces a radiation pattern which is especially
suitable for small boats. It’s made of UltraGlass material which
stands up to high UV and harsh marine environments for years. This
antenna is built to last!

The Deck Mount

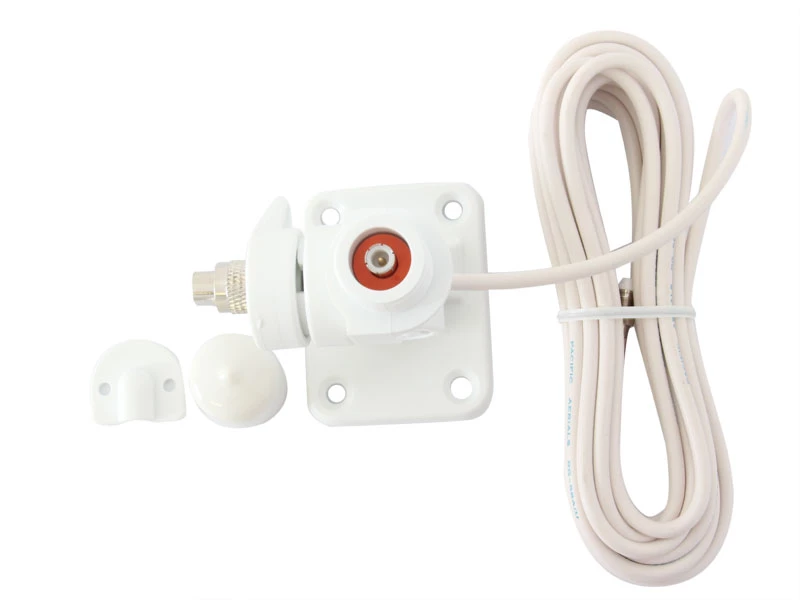

This P6111 Pacific Aerials VHF Antenna Mount can be used for
SeaMaster Pro Series VHF or cellular antennas. A 5-metre cable is
wired into the mount. You can use this in side or deck mount
installations.

Pacific Aerials P6182 SeaMaster Pro VHF Antenna
Features:

• Outstanding electrical performance
• For small boats
• Remove and remount
• Half-wave design
• UltraGlass

Pacific Aerials P6182 SeaMaster Pro VHF Antenna
Specifications:

• Model Number: P6182
• Frequency: VHF 156-162 MHz
• Radome: UltraGlass
• Ferrule: Nylon
• Antenna Type: Half-wave
• Gain: 3dBi
• Marine Gain: 6dB
• Typical VSWR at 156.8 MHz: 1.2:1
• DC Meter Reading: Open Circuit
• Height : 1m
• Diameter: 5mm
• Weight: 105g
• Power: 50W
• Impedance: 50 ohms

Pacific Aerials P6111 VHF Antenna Four Way Deck Mount
Specifications:

• Model Number: P6111
• Material: Glass filled nylon (UV inhibited)
• Weight: 375g
• Height: 106mm
• Base Plate Dimensions: 81 x 63mm
• Hole Size: 61 x 43mm
• Hole Diameter: 7mm
• Cable and Plug: 5m RG58AU with FastFit jack and FastFit PL259
  plug
• Compatible Antennas: SeaMaster Pro Series VHF antennas,
  Heliflex VHF and cellular antennas
