Pacific Aerials P6101 SeaMaster Pro VHF Antenna With P6111 4-Way Base 1.8m

High performance VHF antenna for long range communication

The Pacific Aerials P6101 SeaMaster Pro VHF
Antenna is an awesome accessory for your boat. Imagine
constant clear and crisp VHF radio reception while you’re out on
the water. It’s made of high quality materials that can withstand
harsh marine conditions. And it can be easily removed and remounted
for your convenience.

The Antenna
Get clear VHF radio reception with the Pacific Aerials
P6101 SeaMaster Pro VHF Antenna. It’s the perfect choice
if your motor boat is 4-6m long, where a 2.5m antenna would look
oversized. It features a Unique Pro design that allows the antenna
to be removed and remounted at your convenience. It also has a
half-wave design which produces a radiation pattern especially
suited for small boats. Plus the Ultraglass constructed radome can
stand up to high UV and harsh marine environments. So install the
Pacific Aerials SeaMaster Pro VHF Antenna 1.8m and
enjoy clear and crisp VHF radio reception.

The Deck Mount
This Pacific Aerials P6111 VHF Antenna Four Way Deck
Mount can be used for SeaMaster Pro Series VHF or cellular
antennas. A 5-metre cable is wired into the mount. You can use this
in side or deck mount installations.

Pacific Aerials P6101 SeaMaster Pro VHF Antenna
Features:

• An ideal choice for motor boats 4-6m long, where a 2.5m antenna
  would look oversized
• Unique Pro Series design allows the antenna to be removed and
  remounted at the owner’s convenience
• Outstanding electrical performance
• Half-wave design produces a radiation pattern which is
  especially suitable for small boats
• UltraGlass stands up to high UV and harsh marine environments
  for years

Pacific Aerials P6101 SeaMaster Pro VHF Antenna
Specifications:

• Model Number: P6101
• Frequency: VHF 156-162 MHz
• Ferrule: Glass filled nylon
• Antenna Type: Half wave
• Gain: 3dBi
• Marine Gain: 6dB
• Typical VSWR 156.8MHz: 1.2:1
• DC Meter Reading: Open Circuit
• Height: 1.8m
• Weight: 290g
• Power: 50W
• Impedance: 50 ohms
• Cable (on mount): 5m RG-58AU

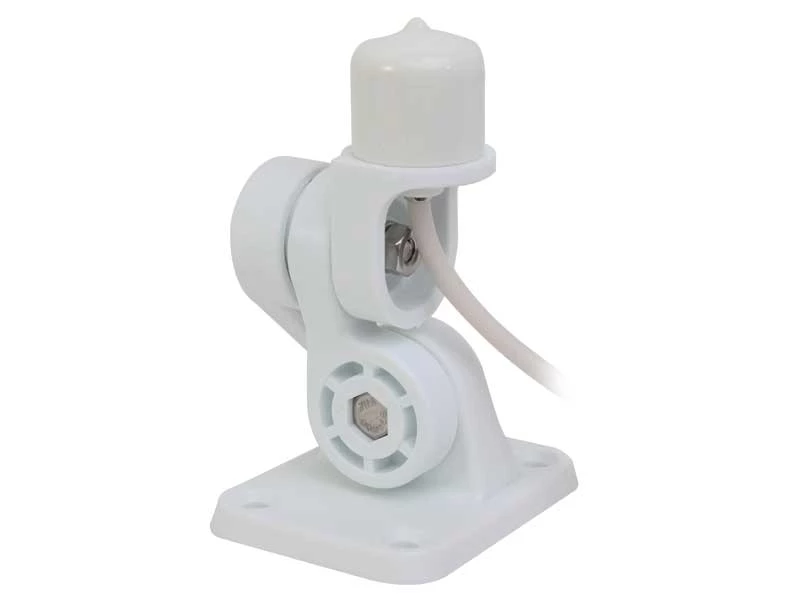

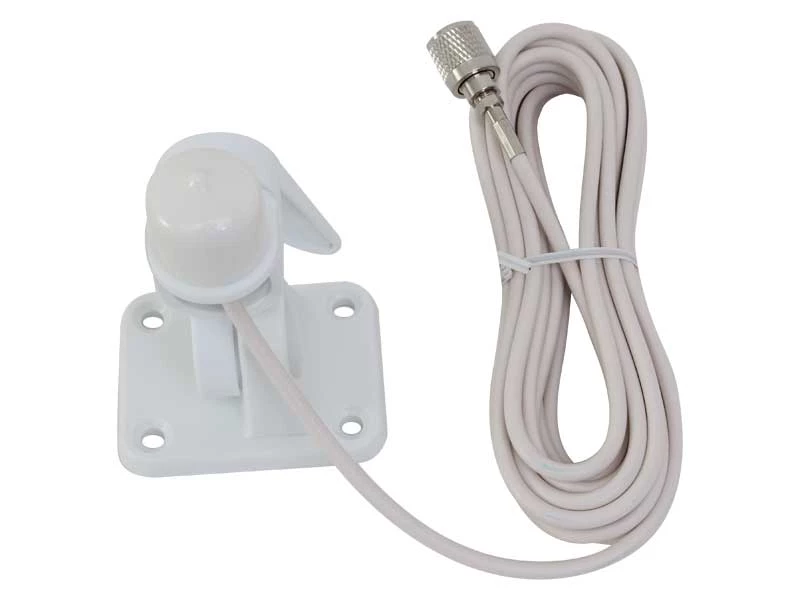

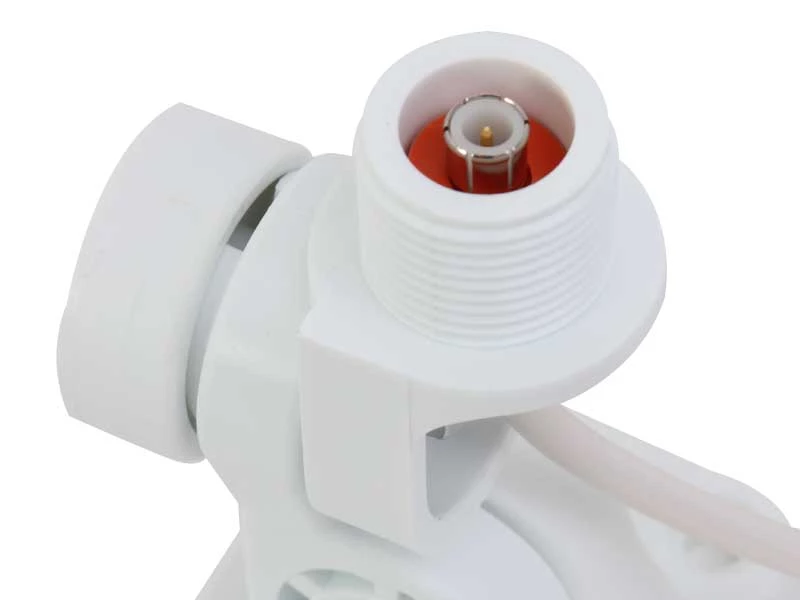

Pacific Aerials P6111 VHF Antenna Four Way Deck Mount
Specifications:

• Model Number: P6111
• Material: Glass filled nylon (UV inhibited)
• Weight: 375g
• Height: 106mm
• Base Plate Dimensions: 81 x 63mm
• Hole Size: 61 x 43mm
• Hole Diameter: 7mm

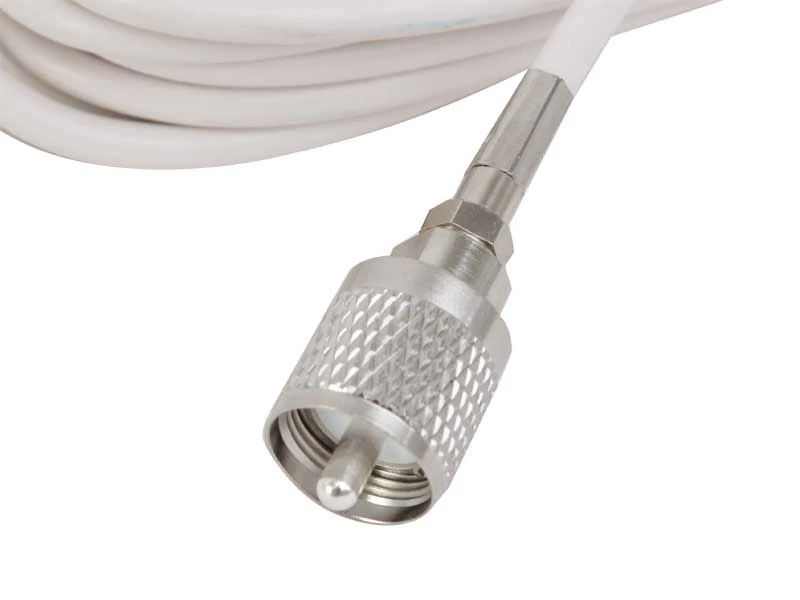

• Cable and Plug: 5m RG58AU with FastFit jack and FastFit PL259
  plug
• Compatible Antennas: SeaMaster Pro Series VHF antennas,
  Heliflex VHF and cellular antennas

Note: Use this antenna with Seamaster
Pro bases: P6111, P6113 or P6115
