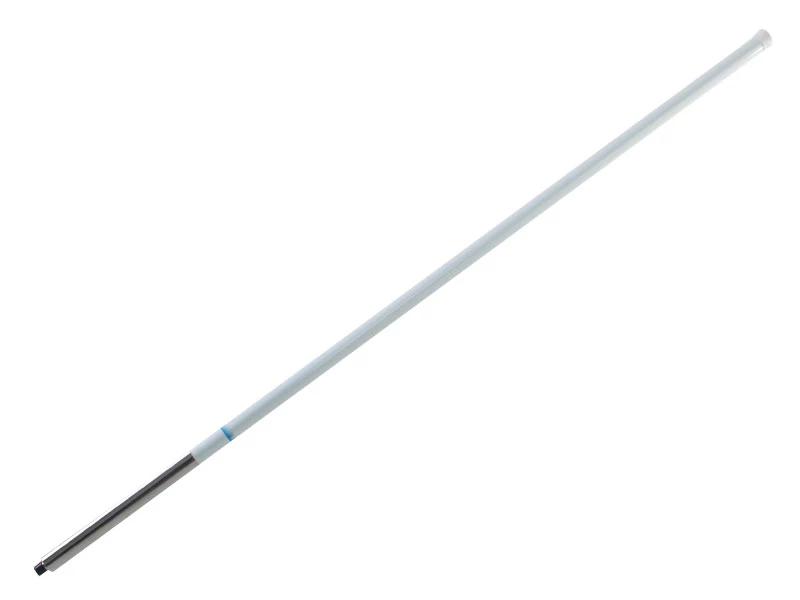

Pacific Aerials P6025 Deep Sea VHF Antenna 1.5m

The ultimate in offshore VHF Radio Coverage

Avoid losing communication through breakages from harsh
environments. The Pacific Aerials P6025 Deep Sea VHF
Antenna is built the toughest in the market and designed
to withstand almost all conditions. This 1.5-metre Ultraglass
antenna is made with stainless steel ferrule that can withstand the

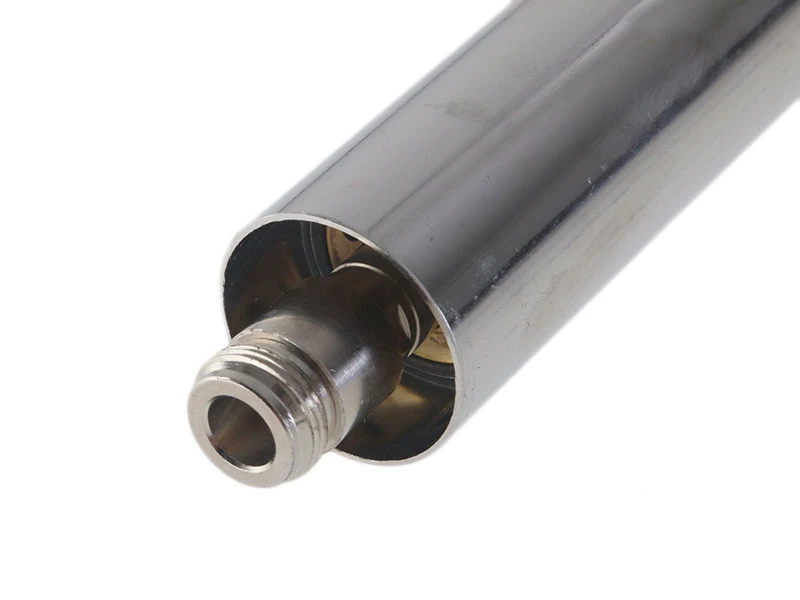

harsh marine environment for years. It also features a recessed
N-type socket for easy connection to a wide range of cable types.
You can also add the U-bolt mounts (optional) for more stability.
Plus you can choose the cable length you require for installing
your antenna.

Pacific Aerials P6025 Deep Sea VHF Antenna
Features:

• Standard antenna for workboat installations
• Combines durability with superb electrical performance
• Constructed with industrial grade UltraGlass and stainless
  steel mounting sleeves
• UltraGlass stands up to high UV and harsh marine environments
  for years
• Halfwave design does not require a ground plane to work
  effectively
• Terminated with a recessed N-type socket for easy connection to
  a wide range of cable types

Pacific Aerials P6025 Deep Sea VHF Antenna
Specifications

• Model Number: P6025
• Frequency: VHF: 156-162 MHz
• Radome: UltraGlass
• Sleeve: Stainless Steel
• Antenna Type: Half wave
• Gain: 3dBi
• Marine Gain: 6dB
• Typical VSWR 156.8MHz: <1.2:1
• DC Meter Reading: Open Circuit
• Height: 1.5m
• Weight: 1.2kg
• Power: 500W
• Impedance: 50 ohms
• Connection: N-type Female

Pacific Aerials P6025 Deep Sea VHF Antenna Product Brochure
