Pacific Aerials Commerical Grade P6025 UltraGlass VHF Antenna 1.5m

The ultimate in offshore VHF Radio Coverage

Avoid losing communication through breakages from harsh
environments. The Pacific Aerials P6025 Commercial VHF
Antenna is built the toughest in the market and designed
to withstand almost all conditions. This 1.5-metre Ultraglass
antenna is made with stainless steel ferrule that can withstand the
harsh marine environment for years. It also features a recessed
N-type socket for easy connection to a wide range of cable types.
You can also add the U-bolt mounts (optional) for more stability.
Plus you can choose the cable length you require for installing
your antenna.

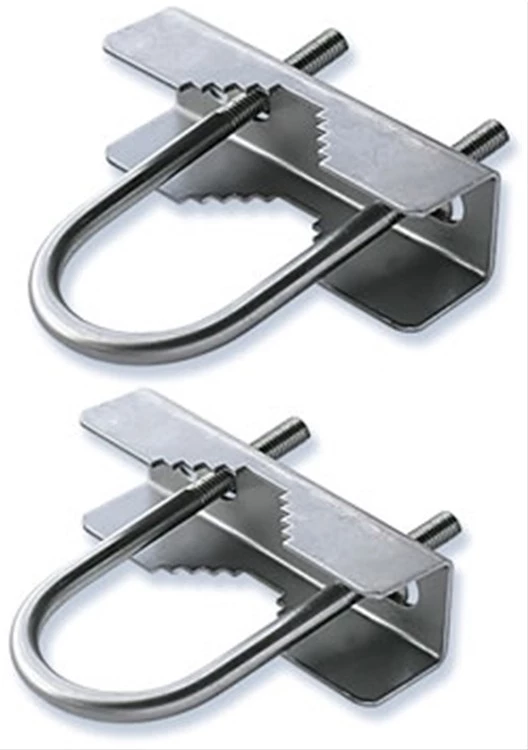

Optional Stainless Steel U-Bolt Antenna
Mounts
Add more stability to your Pacific Aerials DeepSea VHF Antenna by
installing the Pacific Aerials P3253 Stainless Steel U-Bolt
Antenna Mounting Kit. This kit contains 2 U-bolts made of
high quality stainless steel for corrosion resistance and
durability. These U-bolts are easy to install and will hold your
antenna in place for more stability. Ideal for DeepSea series
antennas.

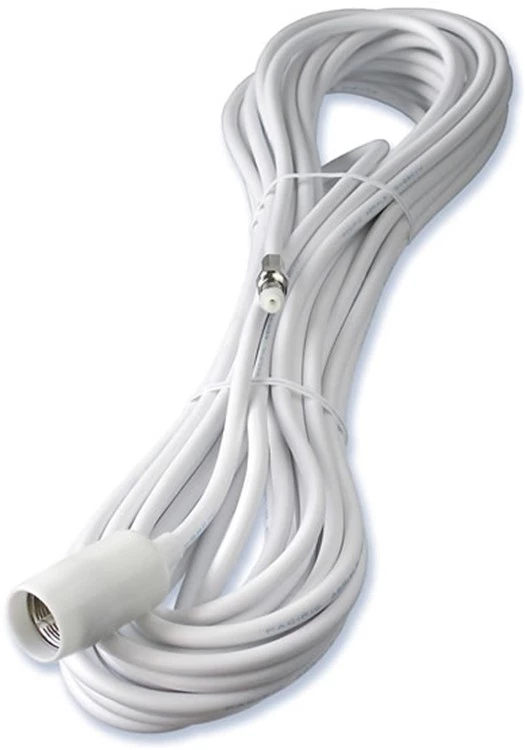

Optional VHF Cable Pack
The Pacific Aerials VHF Cable Pack is complete
with all connectors plus it features a weather shield to ensure a
waterproof connection. These cables are suited for use with P6001
VHF 1.0m Stainless Steel Antenna and P6185 VHF 1.0m UltraGlass
Antenna. Choose from 5 different lengths to suit your VHF antenna
needs.

Pacific Aerials P6025 DeepSea Commercial VHF Antenna
Features:

• Standard antenna for workboat installations
• Combines durability with superb electrical performance
• Constructed with industrial grade UltraGlass and stainless
  steel mounting sleeves
• UltraGlass stands up to high UV and harsh marine environments
  for years
• Halfwave design does not require a ground plane to work
  effectively
• Terminated with a recessed N-type socket for easy connection to
  a wide range of cable types

Pacific Aerials P6025 DeepSea Commercial VHF Antenna
Specifications

• Model Number: P6025
• Frequency: VHF: 156-162 MHz
• Radome: UltraGlass
• Sleeve: Stainless Steel
• Antenna Type: Half wave
• Gain: 3dBi
• Marine Gain: 6dB
• Typical VSWR 156.8MHz: <1.2:1
• DC Meter Reading: Open Circuit
• Height: 1.5m
• Weight: 1.2kg
• Power: 500W
• Impedance: 50 ohms
• Connection: N-type Female

Pacific Aerials Stainless Steel U-Bolt Antenna Mounts
Features:

• Model Number: P3253
• 35mm DeepSea U-bolt kit
• Use with DeepSea antennas
• Material: Stainless steel
• Weight: 335g
• Bolt Length: 90mm
• Hole Centres / Sizes: 42mm
• Bolt diameter: 8mm
• Cable and Plug: On antenna
• Quantity: 2

Pacific Aerials VHF Cable Packs Features:

• For use with P6185 and P6001 antennas
• Supplied complete with all connectors
• Weather shield to ensure waterproof connection
